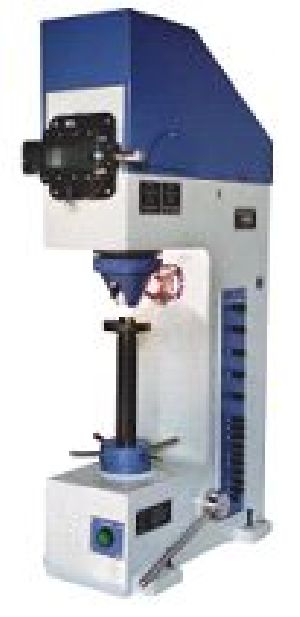

Vickers Hardness Tester



We are a credible Manufacturer & Exporter of Vickers Hardness Tester. We supply both Computerized and Manual Vickers Hardness Testers. The Vickers Hardness Testers are used for measuring Vickers hardness of steel and metals of all types suitable for Small, Hard and thin specimen for case hardened or coated jobs of low case depth. The fully Computerized System is used for Indentation measurement and displays, on in-Built Industrial PC. It comes with touch screen facility. Vickers Hardness is measured using image processing techniques based on conditional edge detection & noise reduction achieved through computer vision. The compiled algorithm conceives into highly accurate, repeatable and faster output then conventional methodology. On the other hand, the Auto/ Manual measurement modes along with exhaustive analytics built in the system helps capturing all results and analyze at will. Specially designed multi element lens system with dual illumination technology offers constant magnification regardless of lens focal point.

Specifications
  • 2 Mega pixel active CMOS sensor, which contains photo detector and an active amplifier offers sharper image than any CCD camera available
  • Image magnification : 75 X
  • Least Count : 0.0005mm
  • Vickers Test Load : 5, 10, 15, 20, 30, 40 & 50 Kgf
  • Selection of test loads : By push button
  • Hardness measurement range : 35 to 1850HV (For Each load there is different range)
  • Test Height x Throat : 245 x120 mm
  • Accuracy of Measurement of Loads : +/- 1%
  • Indirect Verification : By standard test block
  • Conforms to Standard IS:1754
  • Machine Size (Approx) : LWH 660x320x990 mm
  • Total Weight of the Machine : 175 Kgs
