Product Details
Depth of Throat | 200 Mm |
Voltage | 415v |
Size | 370x670 370x670 Mm |
Max test height | 410mm |
Machine Height | 1127 Mm |
Drive Motor | 0.33hp |
Preferred Buyer From
Location | Worldwide |

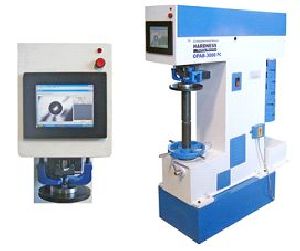

Brinell Hardness Tester, are designed for Brinell hardness measurement on steels and other ferrous materials and also on non ferrous materials like Brass, Bronze, Aluminium, etc. the material can be cast, forged or rolled and the shape can be flat, round irregular.
The actual load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial of load before each test and damping the load application system for smooth application of load.
A separate hydraulic power pack, positioned in the bottom part of the machine increase the machine stability.
Design of a floating fulcrum lever system ensures high accuracy and dependability.
The machine accuracies confirm to IS: 2281-2005 & BS: 240
Technical Specifications
Loads (kgf) | 500 to 3000 in steps of 250 |
Initial load (kgf) | 250 |
Max. test height x throat (mm) | 380 x 200 |
Max. depth of elevating screw below base (mm) | 180 |
Machine height (mm) approx. | 1145 |
Size of base (mm) approx. | 400 x 740 |
Net weight (kg) | 325 |
Drive motor (hp) | 0.50 |
Mains supply | 3 Phase, 415V, 50Hz, A.C |
Indentation measurement | By separate Or Built in Microscope |
