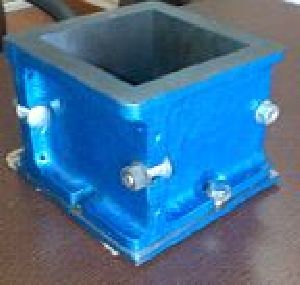

Cube Moulds

Cube Moulds
Business Type Manufacturer, Exporter, Supplier, Retailer
Shape Square
Thickness 15 Mm
Weight (kg 7kg Up
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Size (mm)

Gatha Enterprises is the best destination to avail Cube Moulds. We are a well-known Manufacturer and Exporter of Cube Moulds in Gulf Region, East Asia, Europe, Africa, Australia and Central America. We offer Cube Moulds of 150mm and 100mm as per BS 1881 or as per the customer requirement. Cube Moulds designed by us are manufactured from graded cast iron to maintain the required hardness. The bottom plate of our Cube Moulds is made up of mild steel. The internal surfaces of the Cube Moulds are accurately machined. Our Cube Moulds are made in accordance with the BS 1881. Weight : 14 Kgs to 17 Kgs or as per the requirement. Designing and Structure of Cube Moulds The depth of the Cube Moulds and the distance between either pair of opposite internal faces is within ±0.15mm. All the angles are at right angle to the adjacent faces. We have used 8 dowel pins in our Cube Moulds, in which 4 are for locking and another 4 are for location purpose. The locating pins sites near the carriage bolt and able to slide freely in and out of the locating hole. However, 2 Clamps are also fitted in a manner that only by loosening the nut and pulling back the clamps, one can be able to lift complete mould (Cast Iron assembly) upwards. This design is useful for easy and fast reassembly of the Cube Molds.
